Description

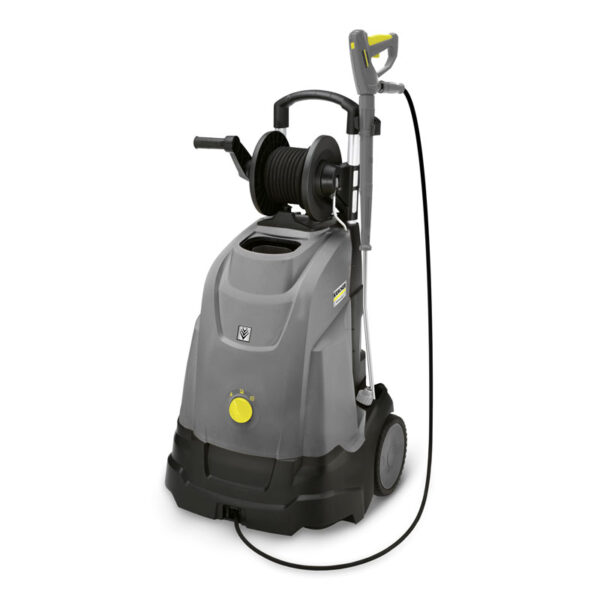

The HDS 5/11 UX is a compact hot water pressure washer which features a 3-piston axial pump, air-cooled 2-pole electric motor and a 15m hose with integrated hose reel. The machine allows for easy transportation and storage thanks to its low weight, compact upright design and large diameter wheels, and is small enough to be transported in a typical estate car. . With simple OFF-COLD-HOT operation, the 5/11 U is the perfect machine for light-medium duty cleaning tasks where time is of the essence.
Supplied with:
- Trigger gun: EASY!Force Advanced
- High-pressure hose length: 15 m
- Spray lance: 840 mm
Additional information
| Current type (Ph/V/Hz) | 1 / 230 – 240 / 50 |
|---|---|
| Flow rate (l/h) | 450 |
| Operating Pressure (bar/MPa) | 110 / 11 |
| Temperature (supply 12°C) (°C) | max. 80 |
| Power Rating (kW) | 2.2 |
| Consumption fuel oil (kg/h) | 2.4 |
| Fuel tank (l) | 6.5 |
| Weight (kg) | 67.4 |
| Dimensions (mm) | 618 x 1163 x 994 |
Compact design
- Space-saving storage and transport.
- Spill-proof pump and fuel tank for transport lying down.
- Ideal for small service vehicles.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high pressure gun.
- EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.
Integrated hose reel
Convenient, secure pressure hose storage. Ensures ergonomic operation. Reduced set-up times.
Fine-mesh water filter
Efficiently protects high-pressure pump against contamination. Easy to remove from outside.
Innovative upright design
Effortless transport over landings or stairs. Large wheels for unpaved surfaces.
