Description

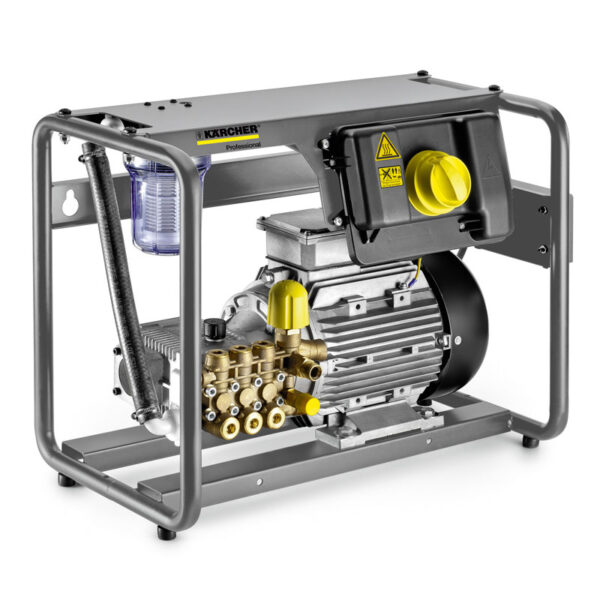

The HD 7/11-4 Cage Classic is the ideal entry level machine in the range of powerful and robust pressure washers from the HD Cage Classic series. It is easy to operate, can be mounted on the wall to save space and saves time and money due to short cleaning times. This single-phase machine with 4-pole motor is designed for continuous heavy-duty use. The machine is protected by a sturdy frame construction and features a range of high-quality and extremely long-lasting components such as the powerful crankshaft pump with ceramic piston or the sophisticated sealing technology. All relevant parts are easily accessible and low maintenance. The long service intervals allow long operating times for effective use of the pressure washer.
Supplied with:
- Trigger gun: Standard
- High-pressure hose length: 10 m
- High-pressure hose specification: DN 6, 250 bar
- Stainless steel spray lance: 600 mm
- Power nozzle
Additional information
| Current type (Ph/V/Hz) | 1 / 230 / 50 |
|---|---|
| Flow rate (l/h) | 520 – 700 |
| Water feed temperature (°C) | 60 |
| Operating Pressure (bar/MPa) | 70 – 110 / 7 – 11 |
| Max. Pressure (bar/MPa) | 150 / 15 |
| Power Rating (kW) | 2.9 |
| Weight (kg) | 50.5 |
| Dimensions (mm) | 640 x 360 x 500 |
Versatile

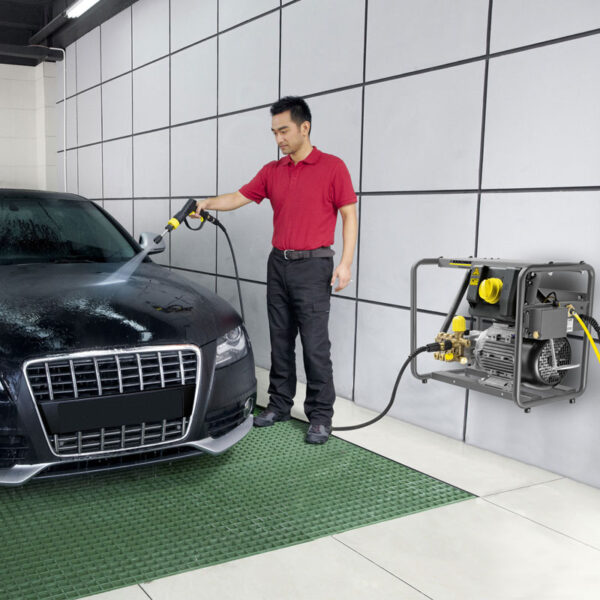

- The machine can be attached to the floor or the wall.
Durable and reliable
4-pole electric motor. Brass cylinder head and ceramic piston. Reliable crankshaft pump with additional thermostat valve.
Robust and secure
Robust tubular frame construction ensures optimum protection of the machine. Built-in handles for transport.
Service-friendly
Excellent access to all relevant components. Large water inlet filter for easy servicing.
